Jeux d'Orgues d'Trois Claviers (v 1.2)


When Graham Goode released the Hauptwerk 3 version of Joseph Basquin’s “Jeux d’Orgues” Stiehr-Mockers organ, the organ community had an excellent free (assuming one already owns Hauptwerk, of course) 19th century organ. The only problem is that it is a two-manual organ. Not to say there is anything wrong with two-manual instruments – but my home console has three and I don’t like to see keyboards going to waste! You can find and download the Jeux d’Orgues” Stiehr-Mockers organ at http://www.jeuxdorgues.com/en/home.php You will need to do this before load my instrument. I embarked on this project to create a three-manual version of the Stiehr-Mockers organ. As in all of my organ design projects, I am not trying to recreate any specific instrument. Instead, I am creating satisfying instruments of important styles that I can use for my own enjoyment. This organ is created using Hauptwerk’s CODM and I make the source code available to others so they can see what I have done and maybe improve upon it. I call this organ “Jeux d’Orgues d’Trois Claviers” which is French (I believe) for “Organ stops on three manuals” or something close!

Version 1.2 sports a new set of screen backgrounds designed by Graham Goode. In addition, he embarrassed me into renaming the old “Great” division to “Grand Orgue” which makes a lot more sense for this decidedly French instrument. Finally, I have replaced the utilitarian stop buttons with smaller versions of drawknob controls in the Console view.

The specification is as follows:


Les' Jeux d'Orgues d'Trois Claviers
Pedal Positif Great Swell (Expressive)
32' Subasse 8' Bourdon 16' Bourdon 8' Bourdon
16' Subasse 4' Flute 8' Montre 8' Salicional
16' Bourdon (Gt) 2' Octave 8' Bourdon 8' Celeste
8'' Octave   Cymbal III 4 Octave 4' Prestant
8' Flute   Cornet (Middle C) 4' Flute 2 2/3' Nazard
4' Prestant 8' Musette 2' Doublette 2' Doublette
16' Bombarde   Tremulant   Fourniture III 1 3/5' Tierce
16' Bason (Sw) 16' Pos to Pos 8' Trompette 16' Bason
8' Trompette Positif Unison Off 4' Great to Great 8' Trompet
4' Clairon 4' Pos to Pos 16' Swell to Great 8' Hautbois
8' Great to Pedal 16' Swell to Positif 8' Swell to Great Tremulant
4' Great to Pedal)] 8' Swell to Positif 4' Swell to Great 16' Swell to Swell
8' Swell to Pedal 4' Swell to Positif 16' Positif to Great Swell Unison Off
4' Swell to Pedal     8' Positif to Great 4' Swell to Swell
8' Choir to Pedal     4' Positif to Great
4' Choir to Pedal     Swell Melody
          Positif Melody


I used most of the Great from the Stiehr-Mockers organ intact. Only the Salicional and Cornet were removed so they could be used on the other manuals. The Positif uses Stiehr-Mockers Swell Bourdon as its foundation. The 4’ Flute is a quieter version of the Great 4’ Flute. The 2’ Octave uses the top four octaves of the Stiehr-Mockers Great 4’ Prestant, voiced a bit brighter. The low octave comes from the Stiehr-Mockers Great 2’ Doublette, voiced to match the rest of the rank. The Cymbal and Cornet are unchanged. The Musette uses the samples from the Stiehr-Mockers Great Trompette, greatly brightened and softened. The Swell 8’ Flute is a brightened, softer version of the Stiehr-Mockers Great 8’ Flute. The Salicional is original, but I softened it a bit to blend with this division. I used its samples a second time (still softer) to create the Celeste. The upperwork is all from the Stiehr-Mockers unchanged – although I softened the Tierce a bit for my own taste. The Bason uses the Stiehr-Mockers Hautbois samples for the top four octaves and the Pedal 16’ Bombarde for the low octave. I brightened the Bombarde and matched the volume of the two ranks. The Pedal is exactly from the Stiehr-Mockers with two added borrowed stops to add to the flexibility of the instrument. I also added a comprehensive set of couplers – because its easy to do this in the CODM and you can never tell when you'll need them! Finally, I added a combination action to match my Rodgers console. Since my own touch-screen monitor is only 15” (a size which fits nicely above a side-jamb of a typical organ) all my screens are sized to fit. The resolution is 1024 x 768.

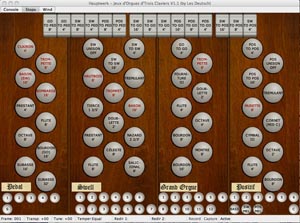

Version 1.2 sports a new set of screen backgrounds designed by Graham Goode. In addition, he embarrassed me into renaming the old “Great” division to “Grand Orgue” which makes a lot more sense for this decidedly French instrument. I have revoiced the swell to increase the volume of the main chorus flues. Finally, I have replaced the utilitarian stop buttons with smaller versions of drawknob controls in the Console view. Here are the console and stop views:




If you want to try this organ, be sure you have Hauptwerk v3.20 or higher (this organ will work with the Free Edition and does not require a special dongle file) and have the Jeux d'Orgues organ installed correctly.You must adhere to the Jeux d'Orgues lisence as follows:

"The personal use of these soundbanks is free. However, you must contact Joseph Basquin for public or commercial usage, or if you want to publish Jeux d’orgues, or a modified version of Jeux d’orgues, on CDs, Internet, or by any other method. This soundbank still is and will remain free, but don’t forget that most similar soundbanks are not free, but rather expensive (usually more than 200$ for Hauptwerk/MyOrgan historical organs). This project will only be able to continue with your donations. Don’t forget to donat and help this project grow!"

Then download the following:

1. Download Hauptwerk Installation rar

This is a Hauptwerk standard installation package in rar format. Save it to your disk, start Hauptwerk, and then use its install feature to read the rar file as per the manual.

I have heard from some users (outside the USA) that you might need to disable the "wind model" for the organ to play properly. Since I am in the USA I cannot test this - but it sounds reasonable.

2. Download CODM Source File

This one is optional. I provide the source code for the Hauptwerk editor so you can see how I did all this and get ideas for your own projects.

This organ is a real value. You get ~40 ranks for fee (I get nothing - but I have great a day job. You might also consider contributing to the Jeux d'Orgues project on their web site) This organ is a small three manual instrument - but the divisions are complete enough for most organ repertoire. The complete set of couplers and combination action certainly helps! Since the samples are 16-bit, the instrument fits into RAM on all but the very smallest computers. The reverb on the samples is more than adequate for practicing. I add a additional convolution al reverb on my recordings - but this is a matter of taste. This makes a great low-cost alternative to my Composite 3 Manual English Organ for people starting out with Hauptwerk or on a limited budget.

You can hear some demo recordings of this instrument on my organ recordings page.

Have fun with this.
